Article 02 – OCI Identity Domains: Architecture, Types, and Directory Management

1. Introduction to OCI Identity Domains

In Oracle Cloud Infrastructure (OCI), human user accounts, administrative credentials, security groups, and single sign-on (SSO) configurations are governed by Identity Domains.

An Identity Domain is a container for managing users, groups, authentication policies, federated identity providers (IdPs), and security applications. It functions as a native Identity-as-a-Service (IDaaS) solution built directly inside your OCI tenancy.

Understanding how identity domains operate and how they partition user populations is essential for designing multi-tenant enterprise access models.

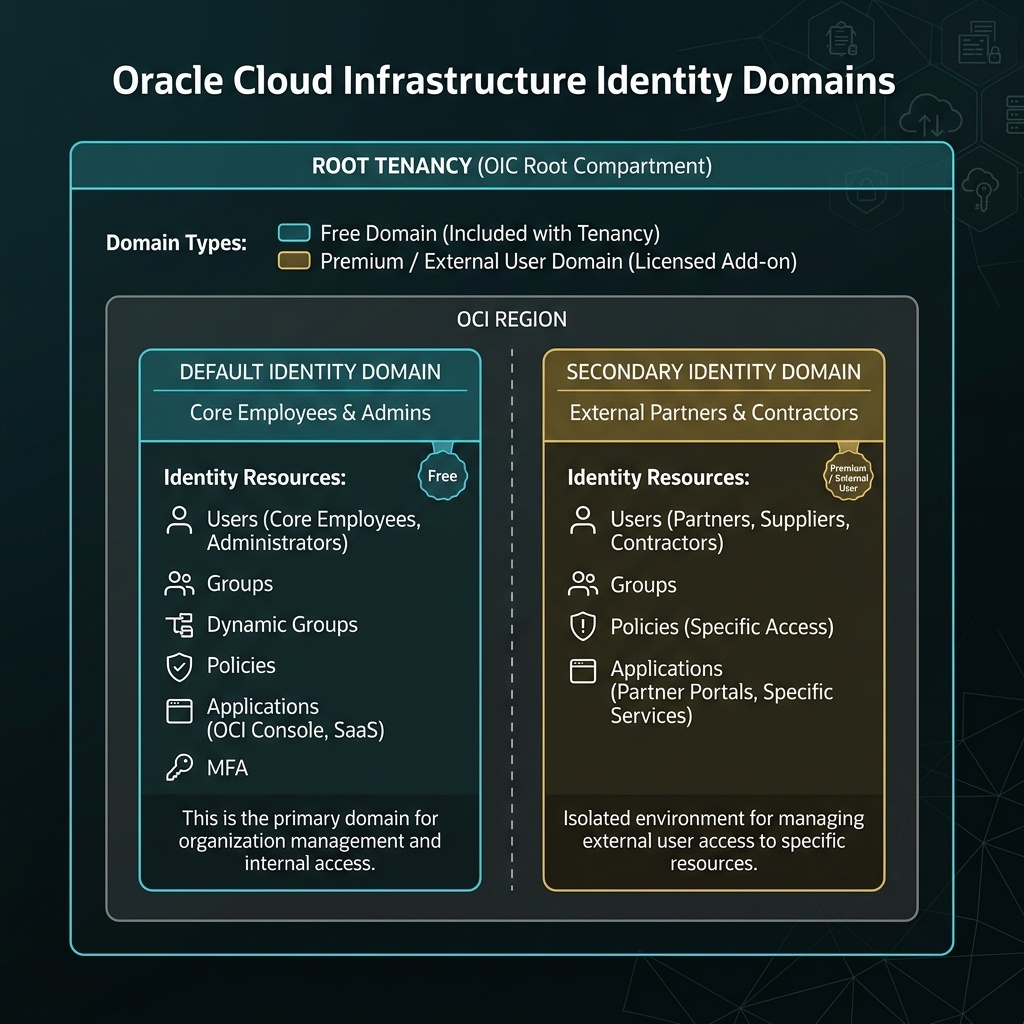

2. Core Architectural Components

Default Domain vs. Secondary Identity Domains

Every OCI tenancy contains at least one identity domain, but enterprise organizations often deploy multiple domains to segregate user populations.

• The Default Domain: When an OCI tenancy is provisioned, OCI automatically creates the Default Identity Domain. This domain houses the initial tenancy administrator, core cloud engineering teams, SecOps personnel, and tenancy-wide default settings.
• Secondary Identity Domains: Organizations can create custom secondary identity domains to isolate specific user groups—such as external contractors, partner organizations, customer-facing application users, or separate business units—preventing directory overlap and enforcing distinct authentication policies.

[!IMPORTANT]
Identity Domain Scope vs. Compartment Scope
An Identity Domain is a tenancy-level global construct. It does NOT reside inside a child compartment. While users in an identity domain can be granted permissions to resources in specific compartments via IAM policies, the domain container itself sits at the root tenancy level.

Identity Domain Types

OCI offers multiple Domain Types, each providing a specific tier of features, user capacity, and security capabilities.

[!WARNING]
Domain Type Upgrade Constraints
You can upgrade an Identity Domain type (e.g., from Free to Premium) via the OCI Console at any time. However, domain type downgrades are restricted if active premium features (such as custom SCIM bridges or risk-based policies) are currently in use.

3. Directory Management Architecture

Inside an Identity Domain, user identity management relies on four primary building blocks:

1. Users: Individual human credentials (email, password, MFA state, API keys) or programmatic service users.
2. Groups: Collections of users. OCI IAM policies assign permissions strictly to Groups, never directly to individual users.
3. Dynamic Groups: Specialized collections of compute instances or cloud resources (evaluated dynamically via matching rules) used for credential-less service-to-service authorization.
4. Sign-on Policies: Configurable rules governing login requirements (MFA enforcement, IP range restrictions, session timeouts, and password complexity).

4. OCI Web Console (GUI) Step-by-Step Walkthrough

Managing Identity Domains and provisioning users is executed directly within the OCI Web Console GUI.

Step 1: Navigating to Identity Domains

1. Log in to the Oracle Cloud Console (https://cloud.oracle.com).
2. Open the Navigation Menu (≡) in the top-left corner.
3. Select Identity & Security, then click Domains under the Identity column.

Console Path: [≡ Main Menu] ➔ [Identity & Security] ➔ [Identity] ➔ [Domains]

Step 2: Creating a Secondary Identity Domain

1. On the Domains list page, click Create Domain.
2. In the creation panel, enter:
3. Name: Partner-Domain
4. Description: Identity domain for third-party audit and vendor users.
5. Domain Type: Select Free (or Premium if advanced SCIM features are required).
6. Click Create Domain.

Step 3: Provisioning Users in the Web Console

1. On the Domains page, click the target domain (e.g., Partner-Domain).
2. In the domain left-hand navigation menu, click Users.
3. Click Create User.
4. Fill in the user profile details:
5. First Name: Jane
6. Last Name: Doe
7. Username / Email: [email protected]
8. User Type: Select Employee or Contractor.
9. Click Create. OCI generates an automated activation email containing a temporary password link.

Step 4: Creating Groups and Assigning Users

1. In the domain left-hand menu, click Groups.
2. Click Create Group.
3. Enter:
4. Name: External-Auditors
5. Description: Third-party security audit team members.
6. Click Create.
7. On the Group Details page, click Assign Users to Group.
8. Select [email protected] from the user table list and click Assign.

5. Common Architectural Misconceptions & Pitfalls

Misconception 1: “IAM Policies Are Granted Directly to Users”

• Reality: OCI IAM syntax does not support attaching policy statements directly to individual user accounts. Permissions MUST be granted to a Group, and users inherit permissions by being assigned to that group.

Misconception 2: “User Accounts Are Automatically Shared Across Domains”

• Reality: Identity Domains enforce strict directory boundaries. A user created in Partner-Domain cannot log into the Console via Default-Domain unless explicitly provisioned in both domains or federated.

Misconception 3: “Deleting an Identity Domain Deletes Cloud Resources”

• Reality: Deleting a secondary Identity Domain removes user directories and authentication credentials, but does not delete Compute VMs, VCNs, or Databases in your compartments. However, resources may become inaccessible if no remaining admin groups have IAM policy access.

6. OCI Identity Domains vs. Google Cloud (GCP) Cloud Identity

For architects transitioning from Google Cloud, the following table compares identity management primitives:
