Article 18 – Networking Troubleshooting & Diagnostic Mechanics: Break-Fix Lab

1. Introduction to Network Diagnostic Engineering

Even meticulously designed Oracle Cloud Infrastructure (OCI) network architectures encounter operational failures due to routing misconfigurations, missing Security List rules, stateless firewall return-path drops, asymmetric firewall routes, or BGP tunnel flaps.

When an application times out, an API request returns Connection Refused, or cross-region database replication fails, systematic troubleshooting is required to isolate whether the failure originates at Layer 3 (Routing/Gateways), Layer 4 (Security Lists/NSGs), or Layer 7 (Load Balancers/DNS).

This article provides a practical diagnostic reference covering 5 real-world production failure scenarios, complete with root cause analysis and step-by-step resolution workflows using the OCI Web Console.

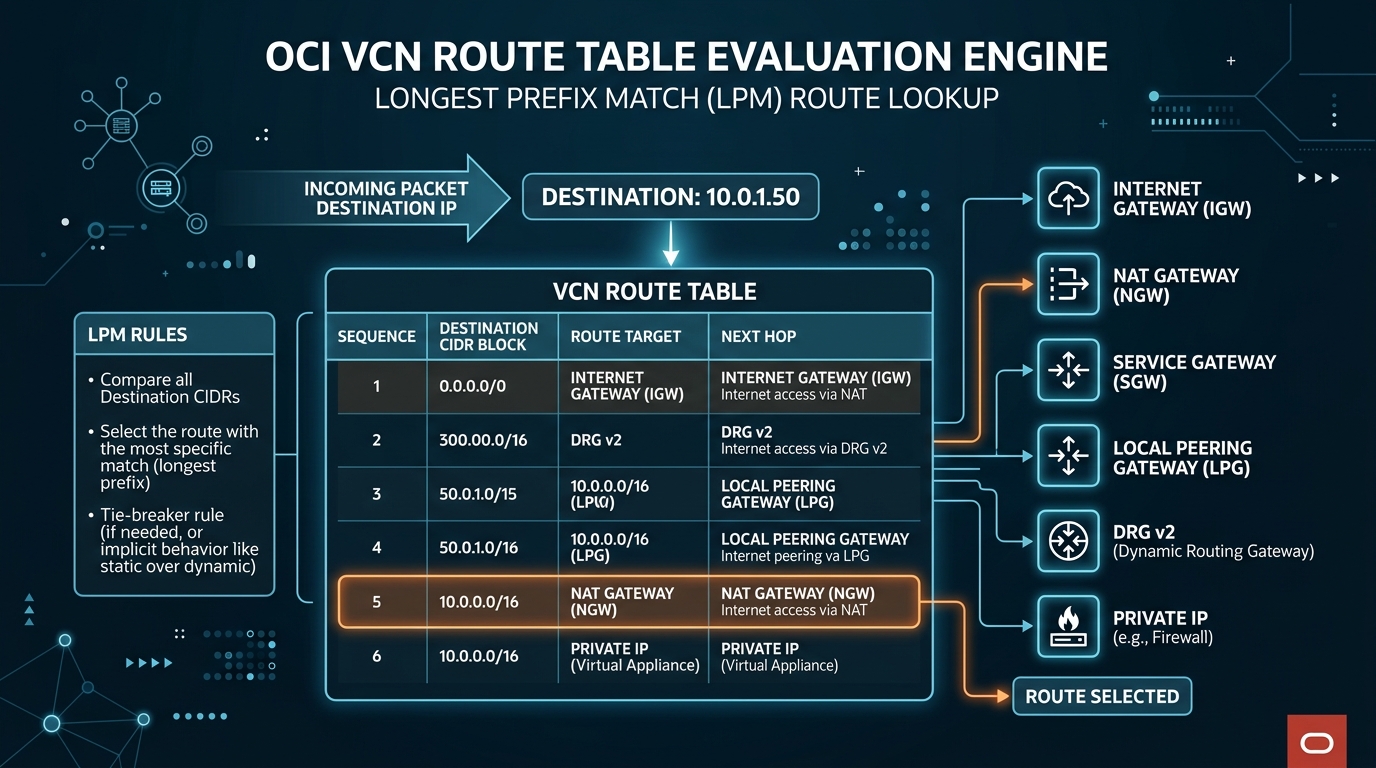

OCI Network Diagnostic & Break-Fix Mechanics Diagram

2. Real-World Production Break-Fix Scenarios

Scenario 1: The Asymmetric Routing Drop (Virtual Firewall Insertion Failure)

Symptom:

Application servers in VCN-Spoke-App (10.1.0.0/16) fail to query database servers in VCN-Spoke-DB (10.2.0.0/16). TCP connections time out during the initial handshake.

Root Cause Analysis:

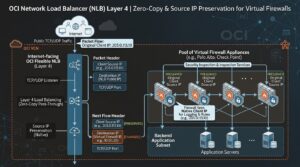

Traffic was configured to route through a central VCN-Hub-Security inspect VCN containing two Palo Alto firewalls behind an OCI Network Load Balancer (NLB).
* Inspection of VCN Flow Logs revealed that request packets reached Palo-Alto-01 (10.0.1.10), which established an active TCP state entry.
* However, return packets from VCN-Spoke-DB were routed back to Palo-Alto-02 (10.0.1.11) because the NLB backend set had Preserve Source IP enabled without Source NAT (SNAT) rules configured on the firewalls. Palo-Alto-02 dropped the return packets as out-of-state violations.

Resolution Workflow:

  1. Log in to the OCI Web Console ➔ Networking ➔ Network Load Balancers.
  2. Select NLB-Firewall-Ingress ➔ Click Backend Sets ➔ Select BES-Firewall-Pool.
  3. Click Edit:
  4. Change Load Balancing Algorithm to 3-Tuple Hash (Source IP, Destination IP, Protocol).
  5. Ensure Preserve Source IP is toggled off (or configure SNAT policies on Palo Alto interfaces so return traffic is forced back to the initiating firewall).
  6. Click Save Changes. Test connection with nc -zv 10.2.1.50 1521; TCP handshake completes instantly.
Scenario 2: Stateless Security List Return Traffic Lockout (Web Cluster Timeout)

Symptom:

Operators deployed a high-performance analytics cluster in Subnet-Analytics using Stateless Security Rules for port 443. External web clients initiate TCP connections, but HTTP responses are never received by browsers.

Root Cause Analysis:

The operator created a stateless ingress rule allowing incoming port 443 traffic:

Ingress: Source 0.0.0.0/0 ➔ Destination TCP 443 (Stateless: YES)

Because the rule was Stateless, the OCI SmartNIC bypassed connection tracking (conntrack). When the analytics server generated response packets back to the client’s ephemeral port (e.g., 10.0.1.15:443 $\rightarrow$ 203.0.113.5:54210), OCI evaluated egress rules. Because no matching egress rule existed for ephemeral ports 1024-65535, the SmartNIC dropped all outbound response packets.

Resolution Workflow:

  1. Navigate to Networking ➔ Virtual Cloud Networks ➔ Select VCN-Analytics.
  2. Select Security Lists ➔ Click SL-Analytics-Subnet.
  3. Click Add Egress Rules:
  4. Stateless: Checked (Stateless).
  5. Destination Type: CIDR (0.0.0.0/0).
  6. IP Protocol: TCP.
  7. Source Port Range: 443.
  8. Destination Port Range: 1024-65535 (Ephemeral Ports).
  9. Click Add Egress Rules. Outbound analytics streams resume immediately.
Scenario 3: Missing DRG Route Distribution (Cross-VCN Transitive Peering Failure)

Symptom:

A newly created spoke VCN (VCN-Spoke-Analytics: 10.3.0.0/16) was attached to an existing DRG v2 (DRG-Hub-Ashburn). Instances in VCN-Spoke-Analytics cannot communicate with instances in VCN-Spoke-Prod (10.2.0.0/16).

Root Cause Analysis:

Although the VCN Attachment for VCN-Spoke-Analytics was created, the DRG Import Route Distribution assigned to DRG-RT-Spokes was not configured to dynamically import routes from the new attachment. As a result, DRG-Hub-Ashburn had no route entry for 10.3.0.0/16 in its lookup table.

Resolution Workflow:

  1. Navigate to Networking ➔ Dynamic Routing Gateways ➔ Select DRG-Hub-Ashburn.
  2. Under Resources, click DRG Route Tables ➔ Select DRG-RT-Spokes.
  3. Click Import Route Distribution ➔ Click Edit Import Route Distribution.
  4. Add Statement:
  5. Match Criteria: Select VCN Attachments (or select All Attachments).
  6. Click Save Changes.
  7. Select DRG Route Table Rules inside DRG-RT-Spokes to verify that 10.3.0.0/16 now appears with state Active.
Scenario 4: Private DNS Hybrid Forwarding Timeout (Inbound Endpoint Security List Block)

Symptom:

On-premises developers attempt to resolve an OCI database hostname (db-primary.prod.oci.company.com), but the query times out. On-premises Active Directory DNS servers report Server Failure (SERVFAIL).

Root Cause Analysis:

The on-premises DNS server was configured with a conditional forwarder pointing to the OCI Private DNS Inbound Endpoint IP (10.0.2.250). However, the Security List guarding Subnet-Private-Regional (where the Inbound Endpoint resides) lacked an ingress rule permitting UDP/TCP port 53 traffic from the on-premises DNS subnet (192.168.1.0/24).

Resolution Workflow:

  1. Open Navigation Menu ≡ ➔ Networking ➔ Virtual Cloud Networks ➔ VCN-Production-Ashburn.
  2. Select Security Lists ➔ Click SL-Private-Subnet.
  3. Click Add Ingress Rules:
  4. Source Type: CIDR (192.168.1.0/24 – On-Premises DNS Subnet).
  5. IP Protocol: UDP (and add second rule for TCP).
  6. Destination Port Range: 53.
  7. Click Add Ingress Rules. On-premises dig @10.0.2.250 db-primary.prod.oci.company.com now resolves instantly.
Scenario 5: BGP Tunnel Flapping over Site-to-Site VPN

Symptom:

An IPSec Site-to-Site VPN connection to an on-premises Fortinet firewall flaps continuously every 90 seconds. BGP session status oscillates between UP and DOWN.

Root Cause Analysis:

Inspection of Fortinet firewall system logs showed a BGP Hold Timer mismatch:
* OCI DRG v2 advertises a default BGP Keepalive of 30 seconds and a Hold Time of 90 seconds.
* The on-premises Fortinet router had a custom BGP Hold Time configured for 15 seconds. Because the firewall expected keepalive packets faster than OCI’s 30-second transmission interval, it declared the peer dead and tore down the IPSec SA every 90 seconds.

Resolution Workflow:

  1. Log in to the On-Premises Fortinet Firewall CLI.
  2. Update BGP neighbor timers to match OCI standard defaults:
    text
    config router bgp
    config neighbor 10.255.0.1
    set keep-alive-timer 30
    set holdtime-timer 90
    end
    end
  3. In OCI Console ➔ Networking ➔ Site-to-Site VPN ➔ Select VPN-HQ-To-Ashburn.
  4. Verify BGP IPv4 Status: Tunnel 1 and Tunnel 2 transition to UP / Established and remain stable.
